Flameproof Light Fitting Manufacturer in India
Flameproof Light Fitting Manufacturer, Supplier & Exporter
Trimiti Electricals has manufactured flameproof light fittings since 1992. Our range covers flameproof / weatherproof well glass fittings, integrated well glass fittings, bulkhead fittings, tube light fittings, hand lamps, reaction vessel lamps and emergency fittings for hazardous areas.
Every fitting encloses the lamp and control gear inside a flameproof (Ex d) body with toughened glass and a protective guard, for use in Zone 1 and Zone 2 with gas groups IIA, IIB and IIC.
Most fittings are now supplied with LED lamps, and conventional HPMV, metal halide, GLS and CFL versions remain available for replacement. See our flameproof LED light page for the LED range.
Also searched as
- Explosion proof light fitting
- Flame proof lighting fitting
- FLP light fitting
- FLP / WP well glass fitting
- Flameproof well glass fitting
- Flameproof bulkhead fitting
- Flameproof tube light fitting
- Flameproof hand lamp
- Flameproof reaction vessel lamp
- Hazardous area light fitting
Types of Flameproof Light Fittings We Manufacture

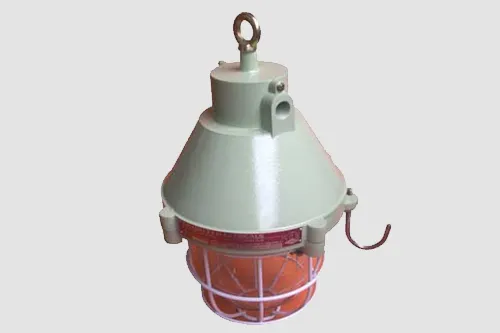

Flameproof / weatherproof well glass fitting
For 80 W / 125 W HPMV, 160 W MLL, 200 W GLS, 2 x 26 W CFL or LED.

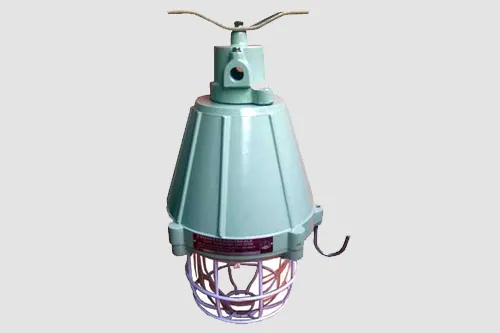

Integrated well glass fitting
With built-in control gear for 80 / 125 W HPMV, 80 W metal halide, 2 x 26 W CFL or LED.

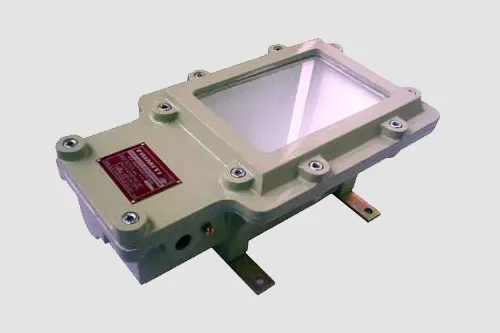

Flameproof bulkhead fitting
For 80 / 125 W HPMV, 160 W MLL, 200 W GLS, 2 x 18 W CFL or LED.

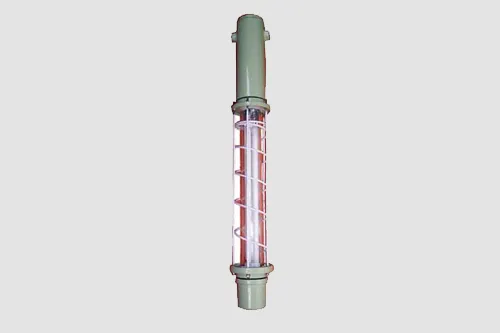

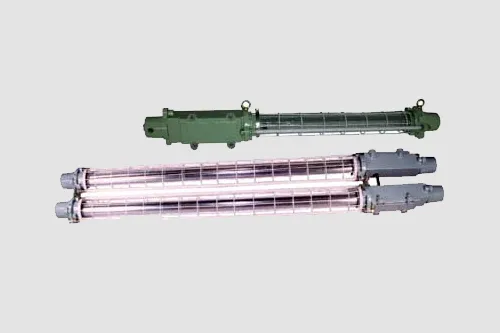

Flameproof tube light fitting
1 x 40 W, 2 x 40 W, 36 W CFL or LED tube versions.

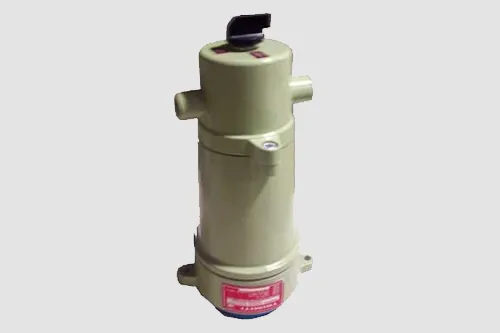

Reaction vessel lamp
With switch (100 W GLS) or with timer, for reactor sight glasses.

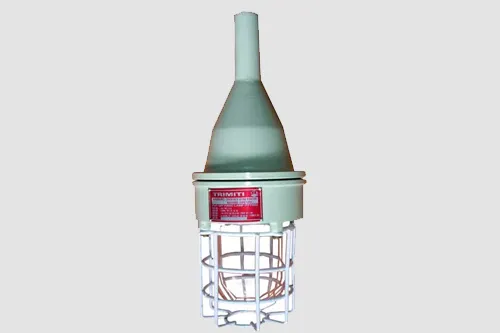

Hand lamp and emergency fitting
Hand lamp for 60 / 100 W lamps; emergency tube light for 18 W CFL; 250 W HPMV well glass.
Flameproof Light Fitting Technical Specifications
| Protection type | Flameproof / explosion proof (Ex d), weatherproof |
|---|---|
| Hazardous area | Zone 1 and Zone 2 |
| Gas groups | IIA, IIB and IIC |
| Certification | PESO, CIMFR and BIS certified (certificate copies shared with quotation) |
| Lamp options | LED, HPMV, metal halide, MLL, GLS, CFL |
| Body | Cast aluminium alloy with toughened glass and wire guard |
| Mounting | Pendant, wall, ceiling, pole |
| Cable entry | Threaded entry (metric / ET / NPT) |
| Finish | Epoxy / powder coated, light grey RAL 7032 / mouse grey (other shades on request) |
Specifications vary by model. Final ratings, drawings and copies of PESO / CIMFR / BIS certificates are shared with our quotation.
Key Features
- Wide range of fitting types
- LED and conventional lamp options
- Toughened glass with guard
- Weatherproof for outdoor use
- Easy lamp replacement
- Spares available for old fittings
Applications & Industries Served
- Refineries and tank farms
- Chemical and pharma plants
- Paint and solvent stores
- Reactors and vessels (sight glass lamps)
- Pump houses and compressor rooms
- Gas bottling plants
Why Buy Flameproof Light Fitting from Trimiti?
Manufacturer since 1992
Direct from our Dombivli factory – no trader margin, clear technical answers.
PESO, CIMFR & BIS certified
Certified flameproof (Ex d) designs for Zone 1 & 2, gas groups IIA, IIB and IIC.
Made to your requirement
Custom sizes, cut-outs, components and wiring to your drawing.
Tested before dispatch
Our factory has in-house testing equipment; every unit is inspected and tested.
Standard items in stock
Ready stock of standard products cuts your lead time and inventory cost.
Quality with economy
Our motto since day one: dependable quality at an economical price, with after-sales support.
How to Get the Right Flameproof Light Fitting Quickly
Share the fitting type, lamp type and wattage (or LED), quantity, mounting and gas group for a quotation.
Flameproof Light Fitting Photo Gallery
Flameproof Light Fitting – Frequently Asked Questions
What is a flameproof well glass fitting?
Do you make LED flameproof light fittings?
What is a reaction vessel lamp?
Do you supply spares for older fittings?
Is your flameproof light fitting certified?
Need a Flameproof Light Fitting? Talk to the manufacturer.
Send your specification or drawing – we reply with the right model and a factory-direct quotation.
